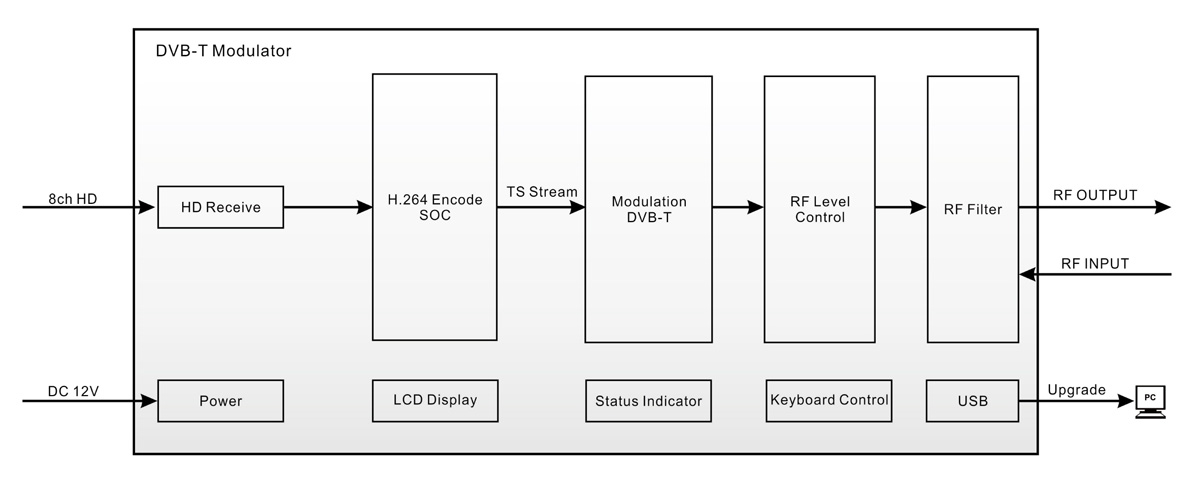

SP-8621 SP-8621 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. Order
● IIntegration of H.264/AVC HD Encoder and DVB-T Modulator in a 19” 2U rack mount system
● Quad HD video inputs
● Adopt multiple audio formats
● 1 x DVB-T RF out with 2 frequency
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz

● Software attenuator
● Support Low Delay
● LCN (Logical Channel Number) support
● Excellent modulation quality

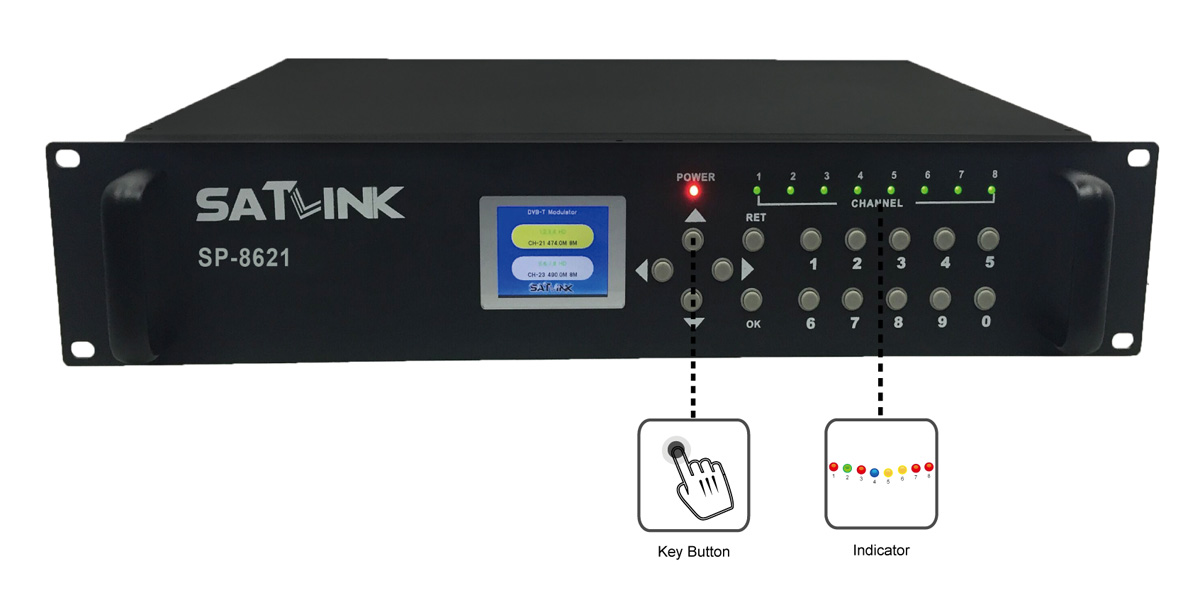

● User friendly configuration interfaces including 2.4-inch LCD with buttons
● Support modifying parameters by network
● Upgrade by PC

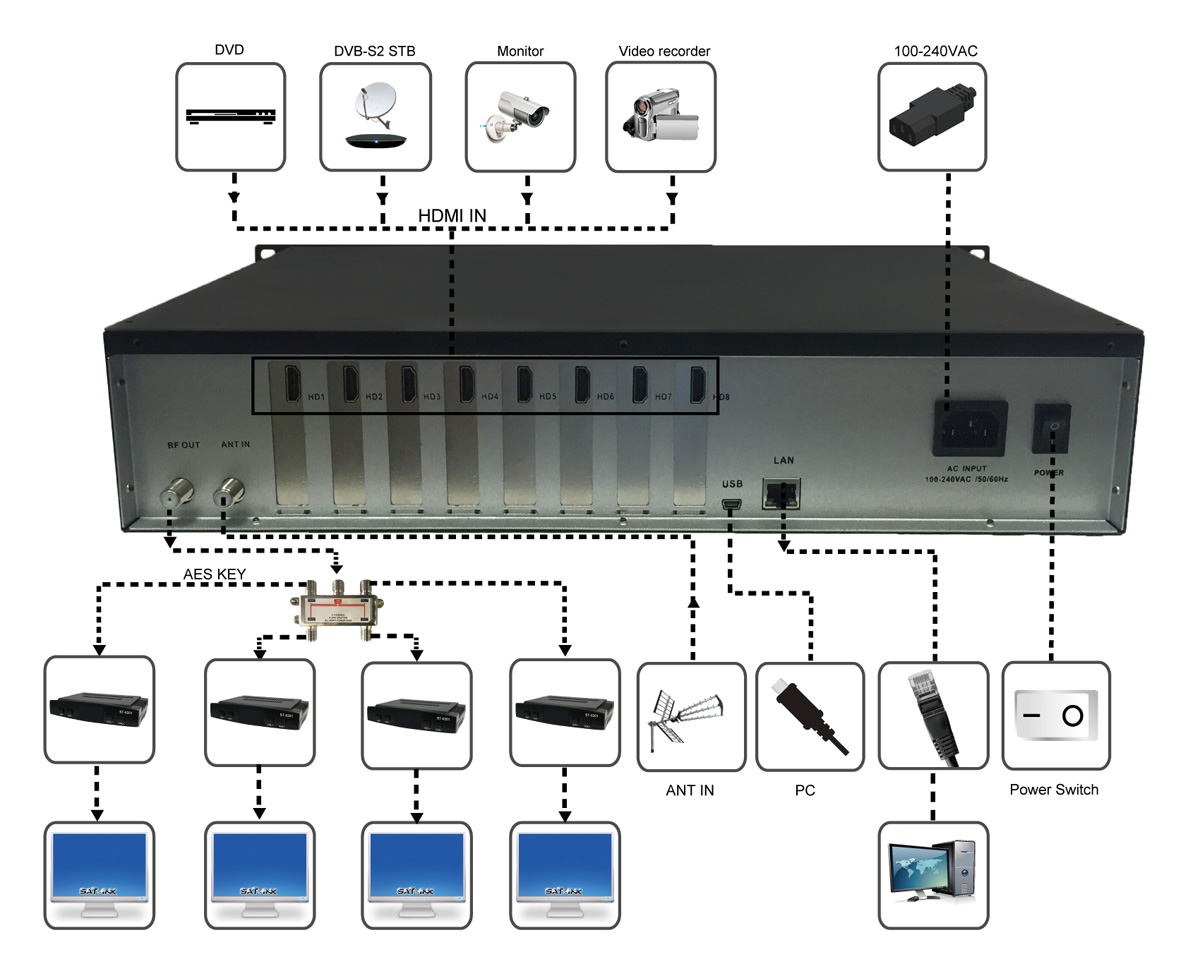

INPUT
VIdeo Input 8 x HD Type A receptacle
Audio Input 8 x HD type A receptacle
ENCODING
Video Resolution 1080p @30p/25p
Video Compression H.264/ AVC
Audio Compression MPEG-1 Audio layer II (ISO/IEC 11172-3)
PID Setting PMT/ Video/ Audio/ PCR
PSI NID/ ONID/ P.D.S./ TS ID
LCN At most 4 numbers
Service Name At most 12 characters
GENERAL CHARACTERISTICS
Type 19 inch rack mount
Dimensions 480×340x90mm
Power Supply AC 100~240 V
Power Consumption 40W
Operation Temperature 0 ~ +45°C
MODULATION
Transmission Mode 8K
Guard Interval 1/32
Code Rate 7/8
Constellation 64QAM
OUTPUT
Standard DVB-T (ETSI EN 300 744)
Frequency Range 100-860 MHz
Output Level 70~100 dBuV
Bandwidth 6, 7, 8 MHz
Connector Type ‘F’ Female
CONTROL
Local operation LCD panel, control buttons
