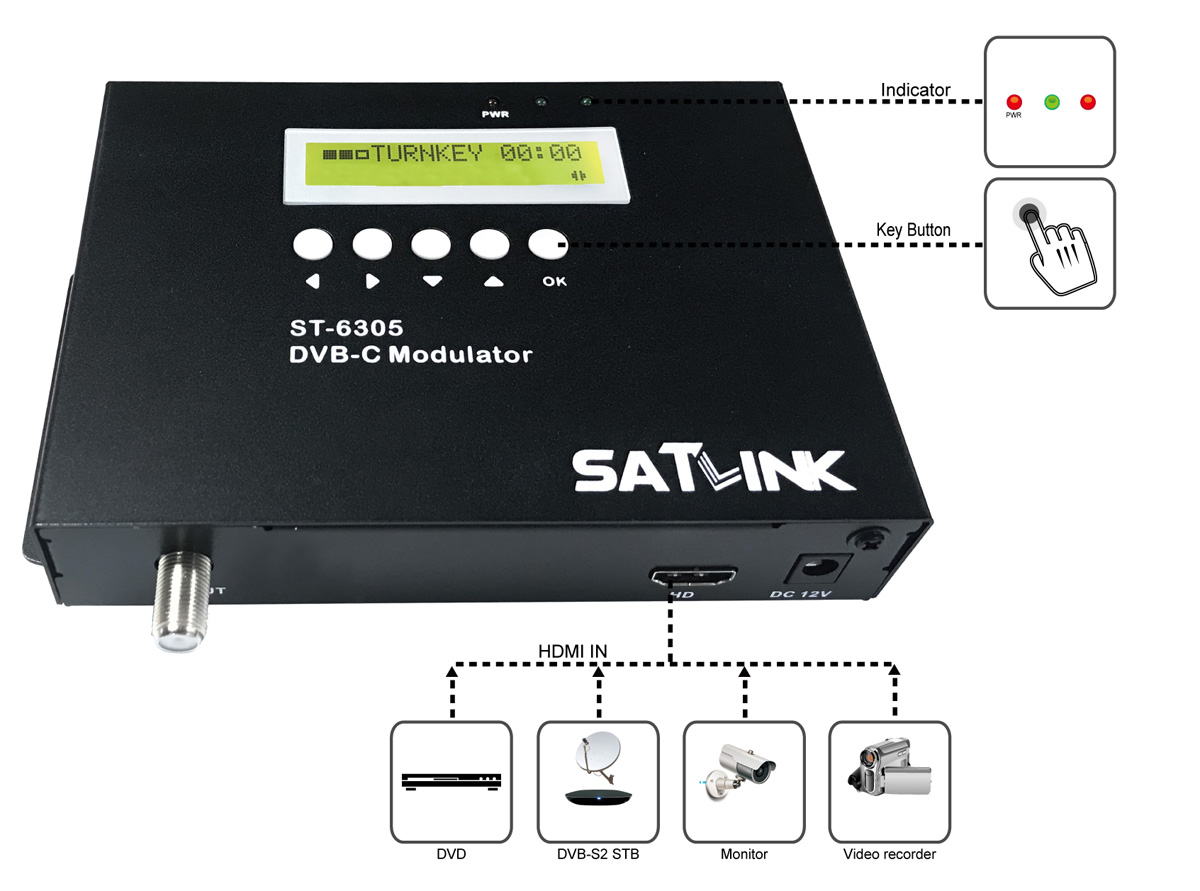

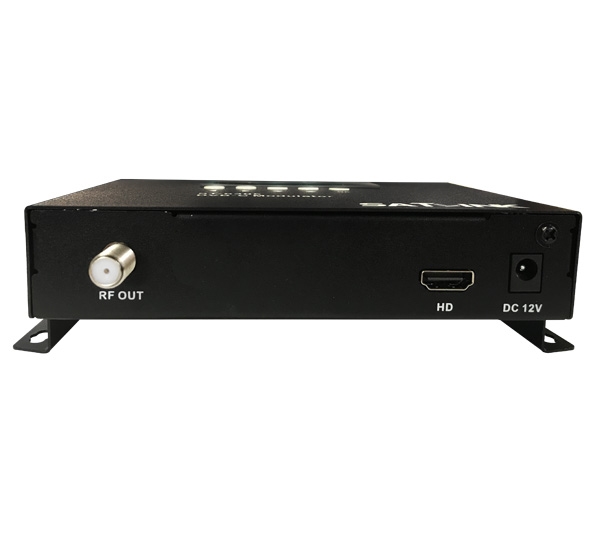

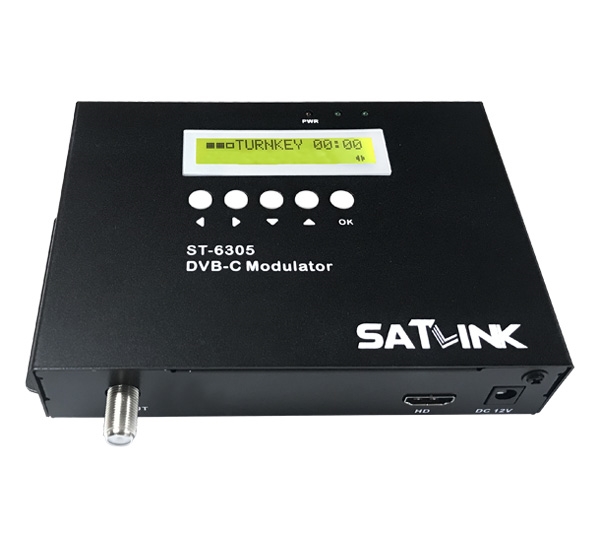

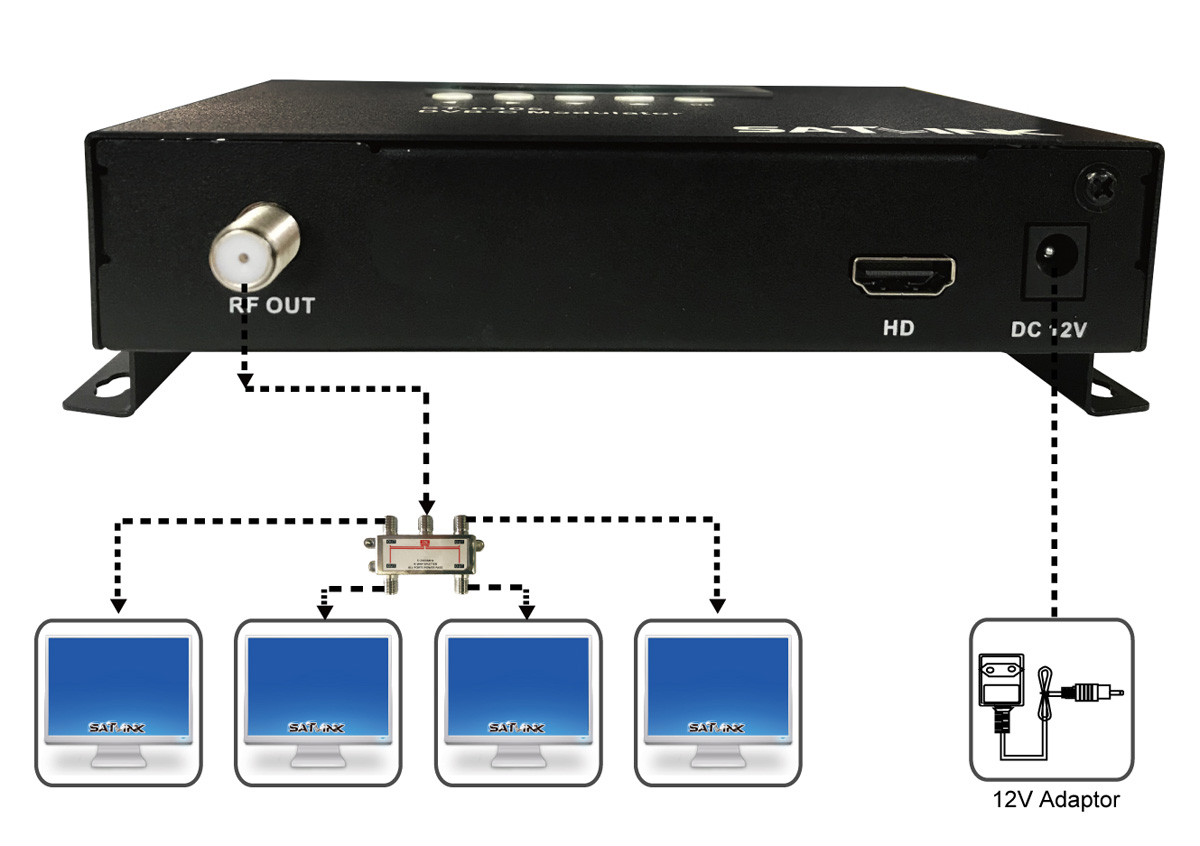

ST-6305 ST-6305 modulator is developed to adapt cable television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-2 encoding and modulating to convert HD signal to DVB-C RF out. Order
● High level of integration, high-performance, Full-featured,integrated design
● Single input modulator that converts HD source to a DVB-C channel
● Standard COFDM modulation and MPEG-2 encoding
● Multiple video format compatibility including 720p / 1080p
● Frequency range: 100~860MHz
● Attenuator level: 0~20dB
● 16*2 LCD lattice screen
● Small size and light weight
● User friendly setup and control
● Compact and wall mountable
Modulator
Standard DVB-C
Constellation 16/32/64/128/256 QAM
Frequency Range 100 ~ 860 MHz
Attenuator Level 0 ~ 20 dB
Output Level Max :100dbuv
Output Impedance 75Ω
HD
Compressio MPEG-2 - bitrate 5-15 Mb/s
Video Resolution 1920*1080_60P, 1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P
Connector HDMI
General
Power Source DC 12V / 1.5A
Operating Temperature 0 ~ +50°C
Dimensions 180mm(L) × 112mm( W) × 42mm(H)
Weight 0.54Kg
