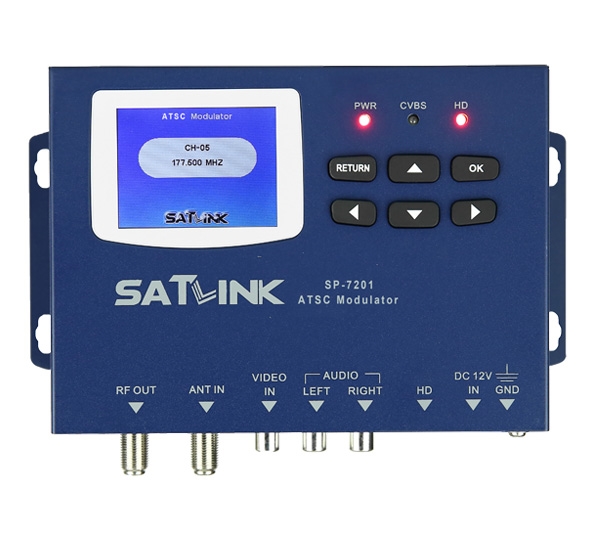

SP-7201 SP-7201 ATSC modulator is developed to adapt USA, Canada,Mexicoand other country’s terrestrial digital television. It's mainly applied inhome entertainment, surveillance control, hotel Digital Signage, shops etc.And it is integrating MPEG-2 encoding and modulating to convert audio/video signals into ATSC RF out. Order
● Fully complying with ATSC standard
● Support 1 HD channel input
● Support MPEG-2 video encoding
● Support MPEG1 Layer 2 (HE-AAC (V2),LC -AAC optional) audio encoding
● Support HD input video format max to 1080p

● Output resolution 1080p@30
● Bandwidth of output signal: 6MHz;
● RF output range: 150~950MHz with 0.1MHz step
● Support 20dBuV attenuator by manual control
● Support 16x2 LCD displaying/ keyboard operating
● Upgrade software by PC
HDMI ENCODING SECTION
Video Encoding MPEG-2
Interface HDMI*1
Resolution Input Output
480/59.94/60p 480/60p
480/59.94/60i 480/30p
576/50i 576/25p
720/50/59.94/60p 720/50/59.94/60p
1080/50i 1080/25p
1080/30/59.94/60i 1080/30p
1080/30/59.94/60p 1080/30p
Aspect Ratio 16:9,4:3
Bit rate 1.000~18.000 Mbps
Audio Encoding MPEGI layer 2
Sample rate 48KHz
Bit rate 64,96,128,192,256,320kbps

Standard ATSC A/53
Bandwidth 6M
Constellation 8VSB
MER ›≥30dB
RF frequency 150~950MHz,0.1MHz step
RF output level(ATT) 80~100dBuV

Power supply DC 12V
Dimensions 150*113*33mm
Weight <1kg
Temperature 0~45°C(operation,-20~80°C(storage)
If you are interested in these products, please leave the relevant staff will contact you quickly.
