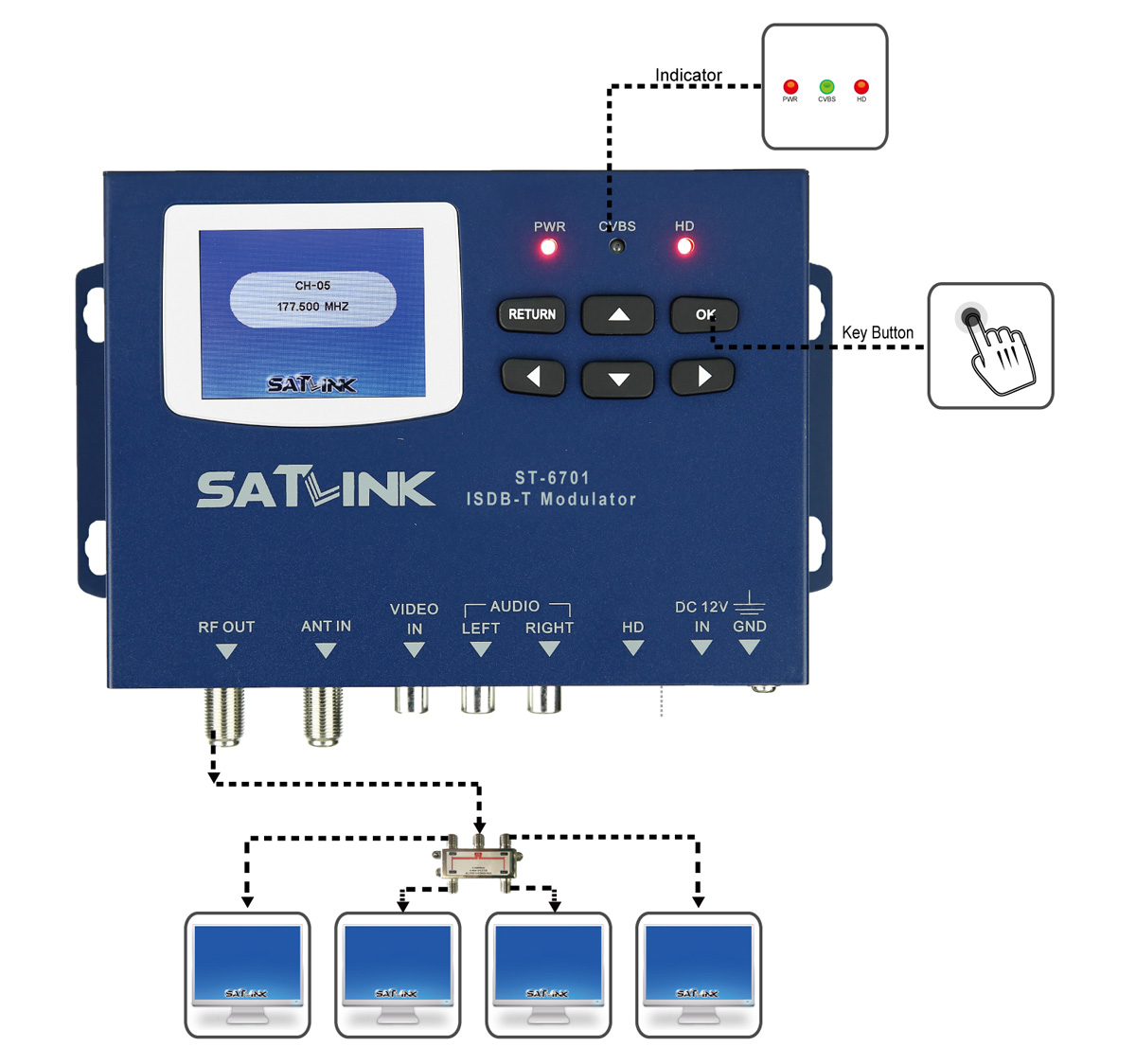

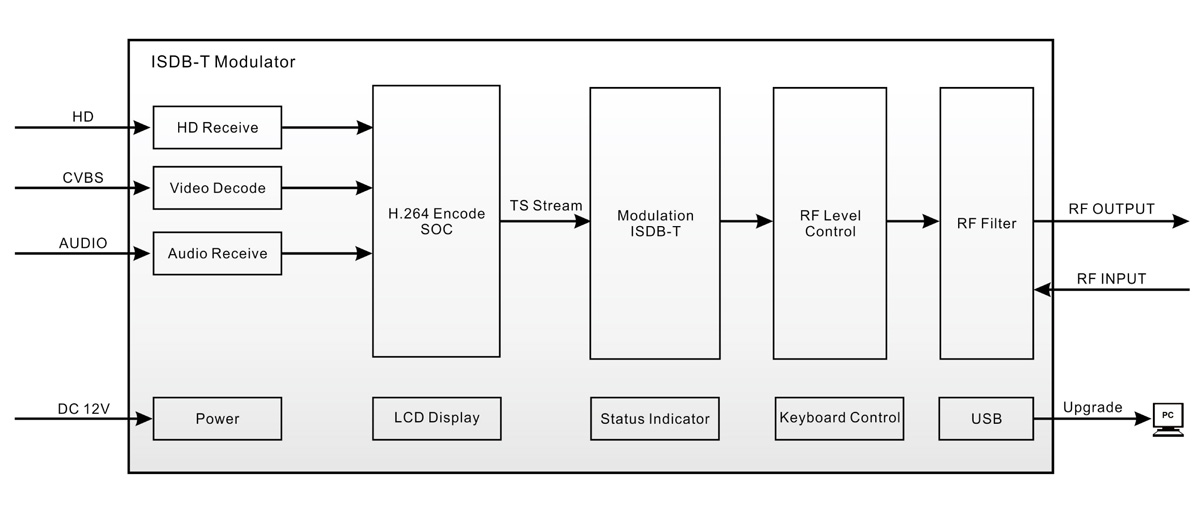

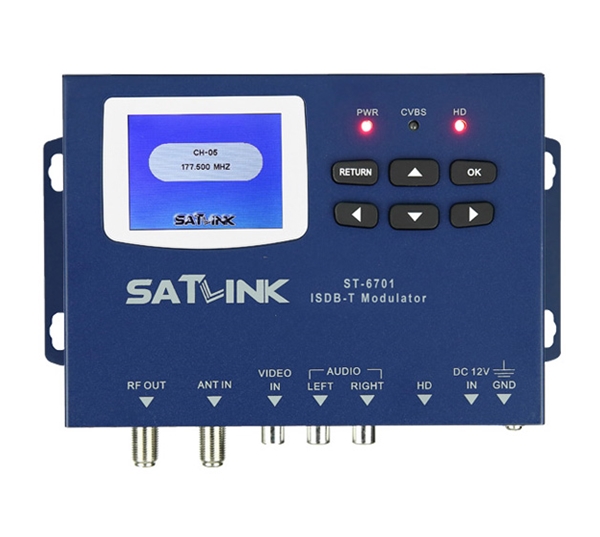

ST-6701 ST-6701 ISDB-T modulator is developed to adapt Japan, Brazil, Argentina and other South American country’s terrestrial digital television. It's mainly applied in home entertainment,surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into ISDB-T RF out. OrderManual
● Fully complying with ISDB-T standard

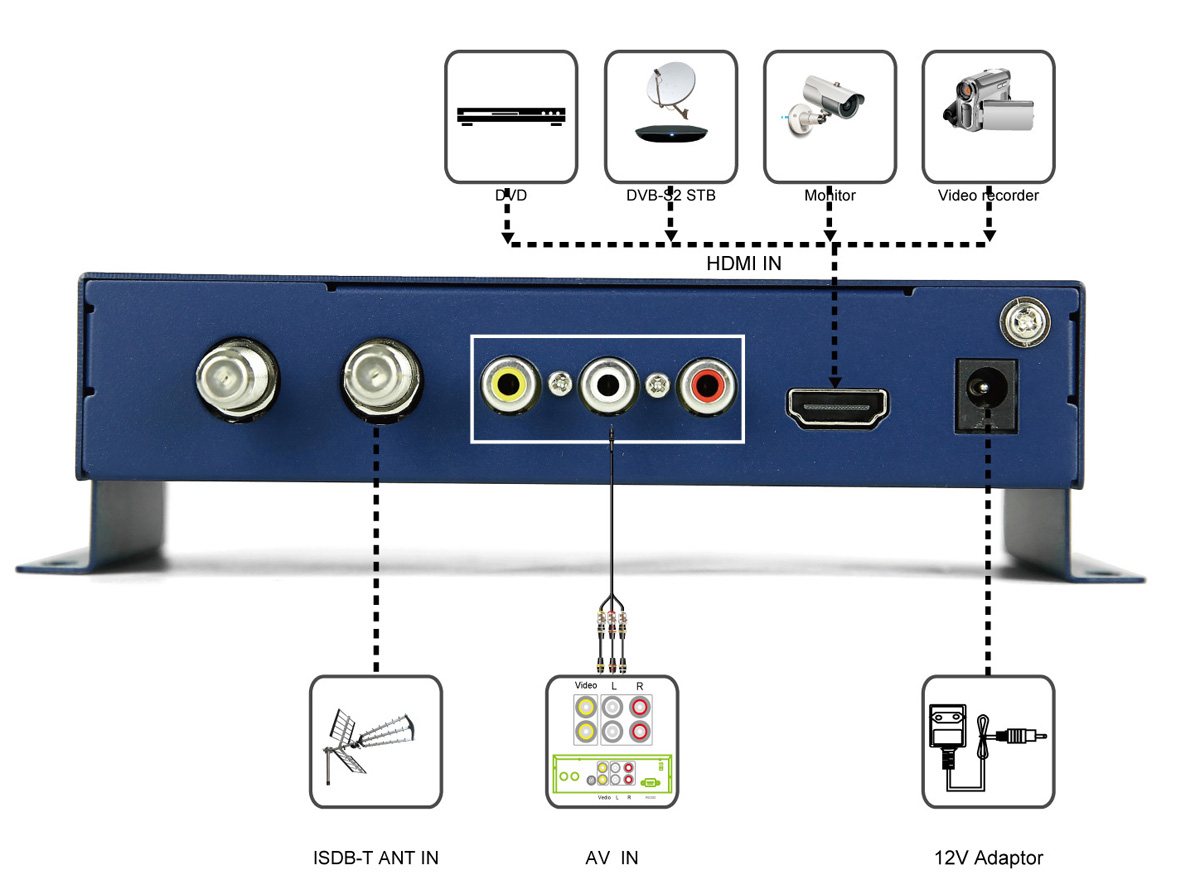

● Support 1 HD channel input & 1 CVBS channel input
● Support H.264/AVC video encoding
● Support MPEG1 Layer 2 (HE-AAC (V2),LC -AAC optional) audio encoding
● Support HD input video format max to 1080p Output resolution 1080p@30
● Support adding AES scramble signal
● Bandwidth of output signal: 6MHz
● RF output range: 100~860MHz with 1KHz step
● RF output level: 69~100dBuV
● Support 2.4 inch LCD displaying/ keyboard operating
● Upgrade software by PC
HD/MI ENCODING SECTION
Video Encoding H.264MP*L  3.0/3.1/4.0
Interface HDMI* 1
Resolution Input Output
480/59.94/60p 480/60p
480/59.94/60i 480/30p
576/50i 576/25p
720/50/59.94/60p 720/50/59.94/60p
1080/50i 1080/25p
1080/30/59.94/60i 1080/30p
1080/30/59.94/60p 1080/30p
Aspect Ratio 16:9,4:3
Bit rate 1.000~20.000Mbps
Audio Encoding MPEGI layer 2
Sample rate 48KHz
Bit rate 128,192kbps

ISDB-T MODULATOR SECTION
Standard ARIB STD-B31
Bandwidth 6M
Constellation QPSK. 16QAM. 64QAM
Guard Interval 1/32,1/16,1/8,1/4
Transmission Mode 2K,8K
RF frequency 100~860MHZ, 1KHz step
RF output level (69~100 dBμV), 1db step

GENERAL
Power supply DC12V/1.5A
Dimensions 154*113*33(mm³)
Weight <1kg
Temperature 0~45°c( operation), -20~80°c( storage)
