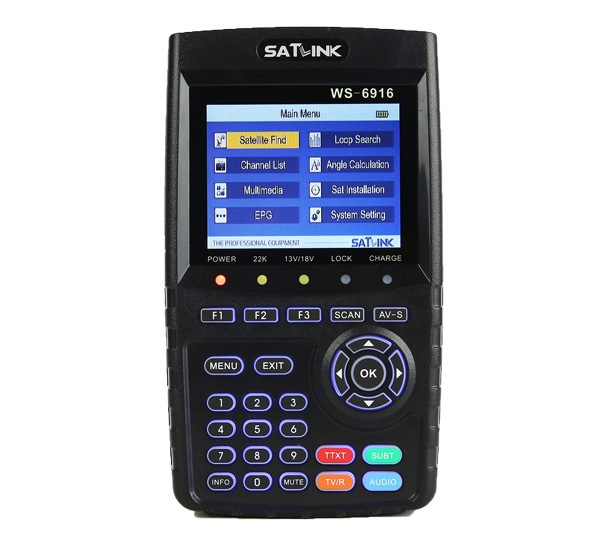

WS-6916 WS-6916 is a DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite finder.With it’s compact size,light weight,intuitive user’s interface,long battery operational hours and rich feature set,the finder provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units. Order Manual

Key Features
Specifications
Functional Block Diagram

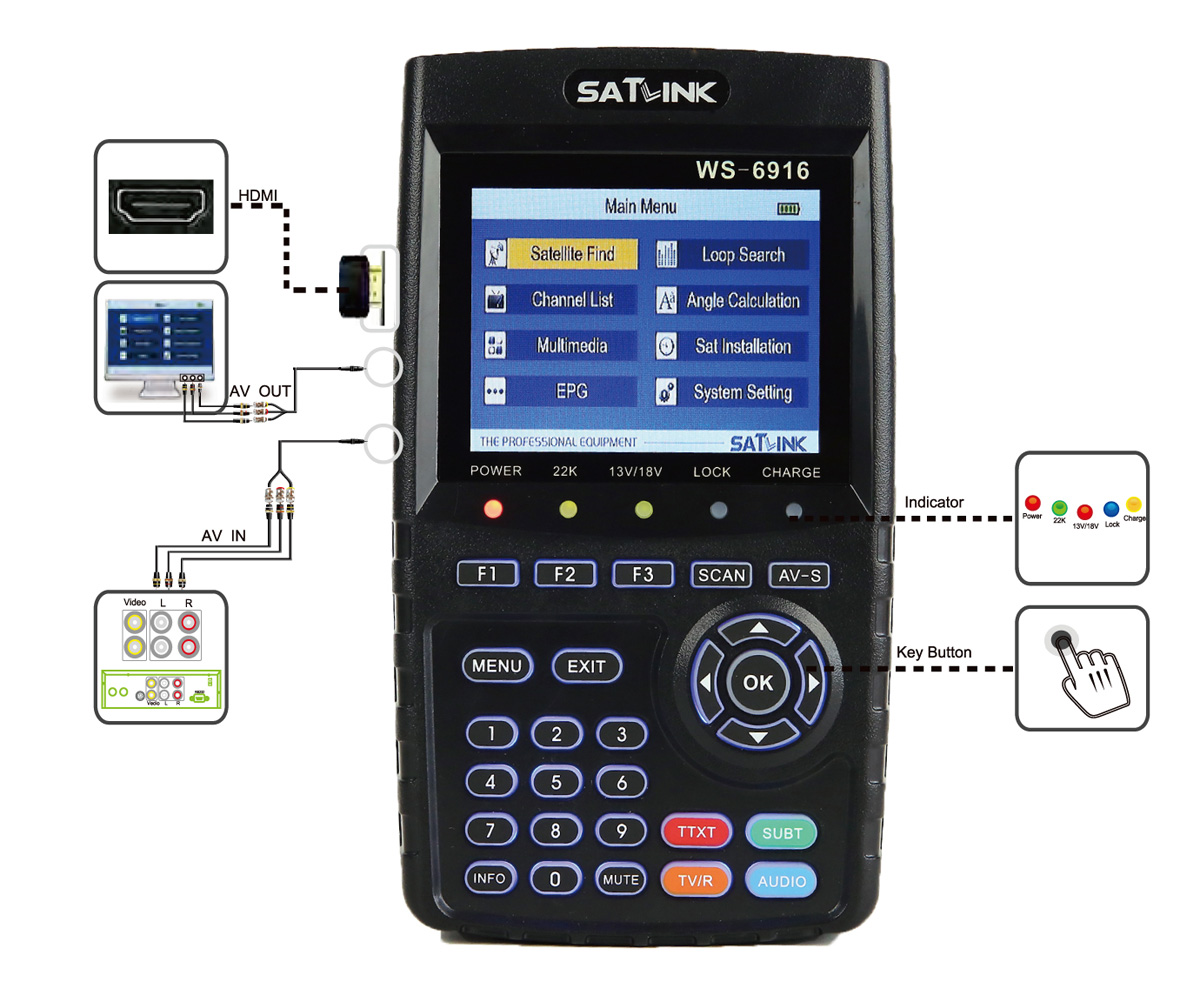

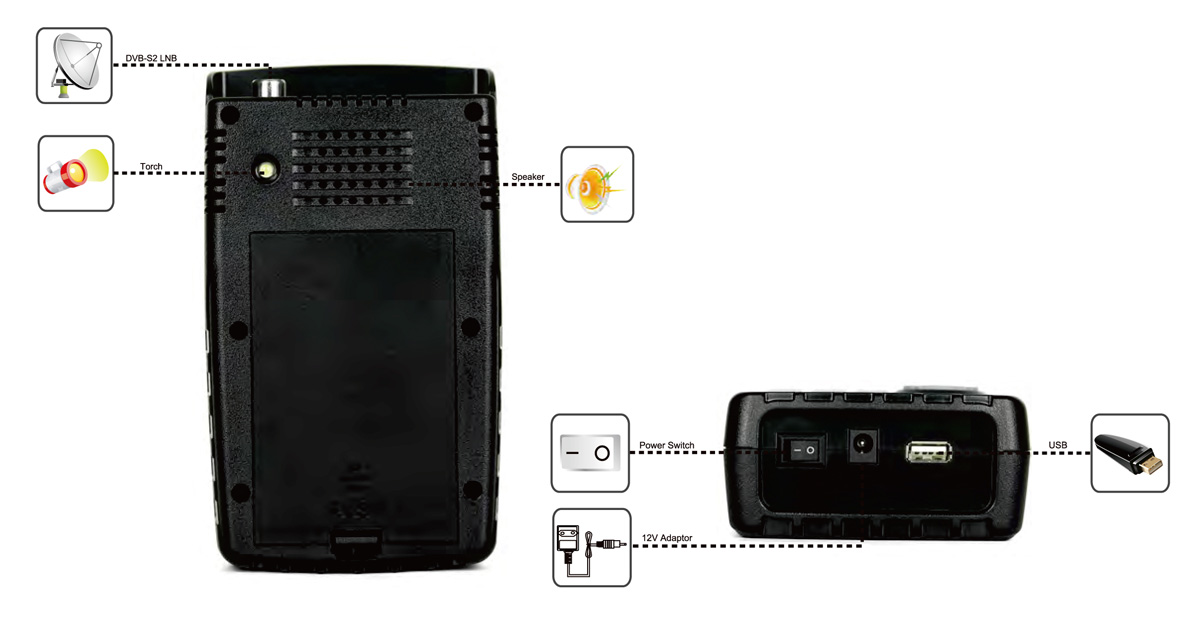

● Interface
-35” High Definition TFT LCD720X576,720×480

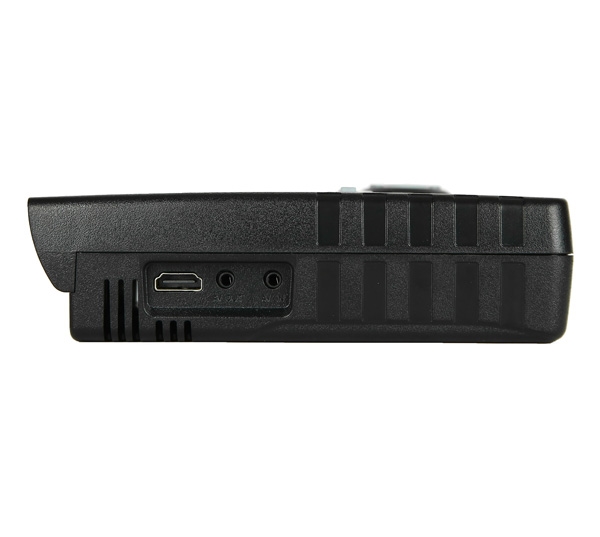

- AV In and AV Out
- HDMI Out
- 7.4 V/3000mAh Li-lon Rechargeable Batter
- 12VDC/1.5A AC/DC Adapter
- Loud Speaker
- LED Flashlight

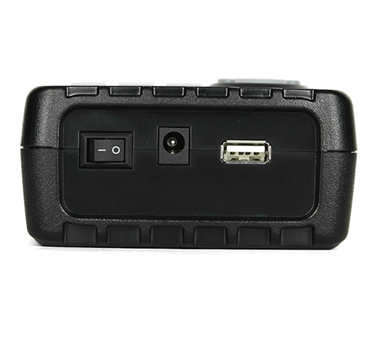

- USB 2.0 Type A
● MPEG-2/H.265(8 Bit) Hardware Decoding
● Auto Angle Calculation of AZ, EL
● DiSEqC 1.0/1.1, 1.2 /usals and 22 kHz Tone
● Signal Strength, BER, MER, S/N, Power Measurmeent
● Signal Lock with Panel LED and Sound Indicators
● About 4 Hours Battery Operation Time
● Auto, Blind, Manual and NIT Scan Mode
● LNB Short Protection
● Software Upgrade and File Transfer via USB

TRANSMISSION STANDARDS
DVB-S/S2, MPEG-2,MPEG-4, H.265(8 Bit)
SATELLITE INPUT/DEMODULATION
Connector Type	F Type
Input Frequency	950 to 2150 MHz
Signal Input Level	-65 to -25 dBm
Band Switch Control	22KHz
LNB Supply	13V/18V, IMax 400mA
Demodulation Type	QPSK,8PSK,16APSK,32APSK
Symbol Rate	2<Rs<45Mband (SCPC/MCPC)
LCD FEATURES
LCD Type	TFT Transmissive
Number of Dots	320 x 240 (RGB)
Active area (WxH)	70.02x52.58 mm²
HDMI OUTPUT CONNECTER
Format	HDMI 1.3a
AV OUTPUT INTERFACE
Connector Type	3.5 mm jack
Video Output	CVBS
Audio Output	Stereo Audio L/R output
AV INPUT INTERFACE
Connector Type	3.5 mm jack
Video Input	CVBS
Audio Input	Stereo Audio L/R input
DATA SERVICE PORT
Connector	USB
Data Protocol	USB2.0 interface
File Management System	NTFS,FAT32,FAT16
File Format	wma,mp3,mp4,avi,jpg,jpeg,bmp,img
POWER SUPPLY

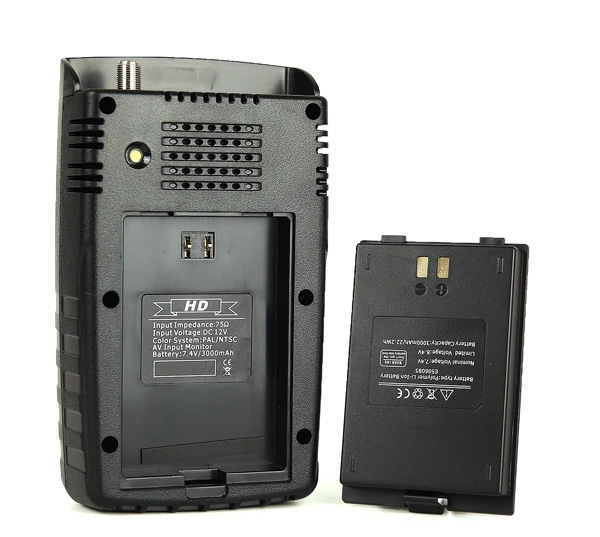

Li-Ion Battery	7.4V/3000mAh
Adapter	OUTPUT :DC12V/1.5A, INTUPT :100~240VAC 50/60Hz
Power Consumption	Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H)	10.1x17.7 x4.7(cm³)
Net Weight	0.46kg
