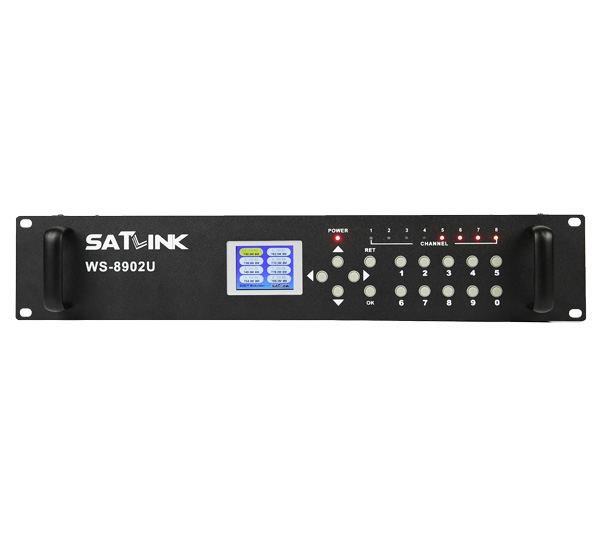

WS-8902U ST-8902U DVB-T modulator is well designed to multiplex video signals from 8 different signals into 8 channels RF out. ST-8902U is a compact and convenient device used for home/hotel entertainment, surveillance contiol, digital sinage, multi-dwelling unit, commercial business complex....etc., in which video broadcasting with multiple signal sources is required. Order Manual

Key Features
Specifications

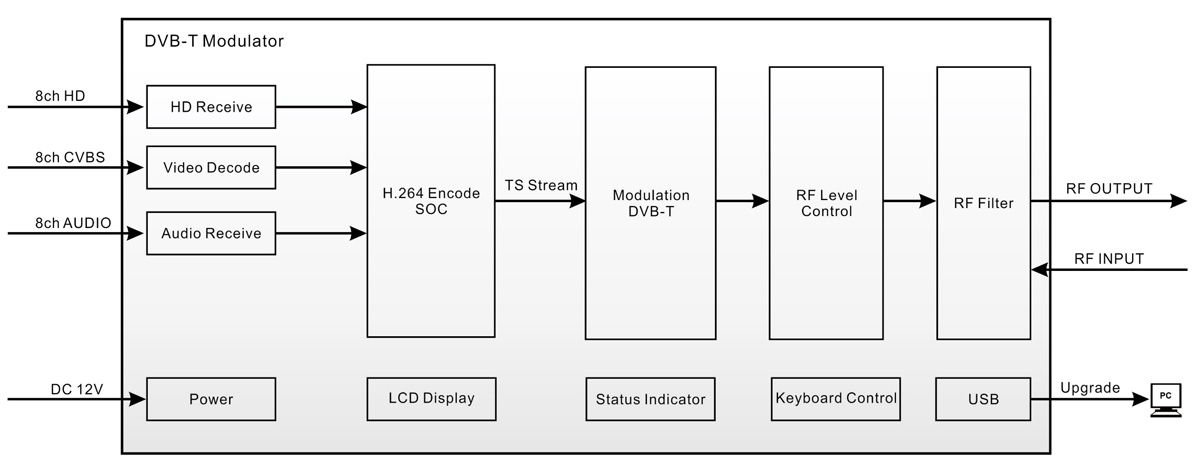

Functional Block Diagram

● High level of integration, high-performance,full-featured, integrated design
● 8 route input modulator convert to 8 DVB-T channels
● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV

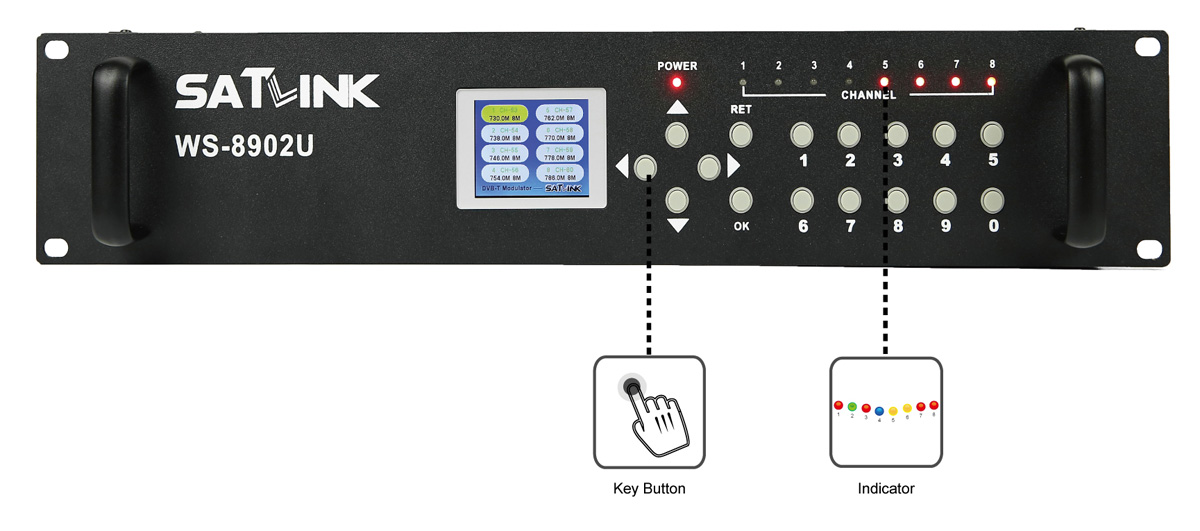

● 2.4-inch color LCD display
● Carriers 2K and 8K
● User friendly setup and control
● Upgrade by PC

MODULATOR
Standard	DVB-T
Constellation	QPSK / 16QAM / 64QAM
Bandwidth	6 / 7 / 8 MHz
Carriers	2K / 8K
Guard Interval	1/4, 1/8, 1/16, 1/32
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range	100 ~ 860 MHz
Output Level	70 ~ 100 dBuV
Output Impedance	75Ω
VIDEO
Input Format	CVBS/HDMI 1.3
Encoding Format	H.264
Video Resolution	576i PAL / 480i NTSC/1080p
Connector	RCA/HDMI 1.3
AUDIO
Input Format	Stereo L/R channel
Encoding Format	MPEG-1 Audio Layer II
Connector	RCA
GENERAL
Power Source	1/4, 1/8, 1/16, 1/32
Operating Temperature	1/2, 2/3, 3/4, 5/6, 7/8
Dimensions	480mm( L ) × 340mm(W) × 90mm(H)
Operating Temperature	0 ~ +45°C
Weight	7.16Kg
