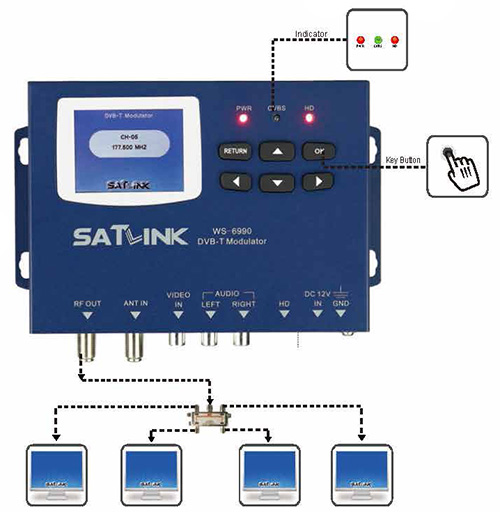

WS-6990 WS-6990 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. OrderManual
● High level of integration, high-performance,Full-featured,integrated design
● single input modulator convert to one DVB-T channel
● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Continuously adjustable RF signal output level range 70dBuV from 100dBuV,step 1dBuV

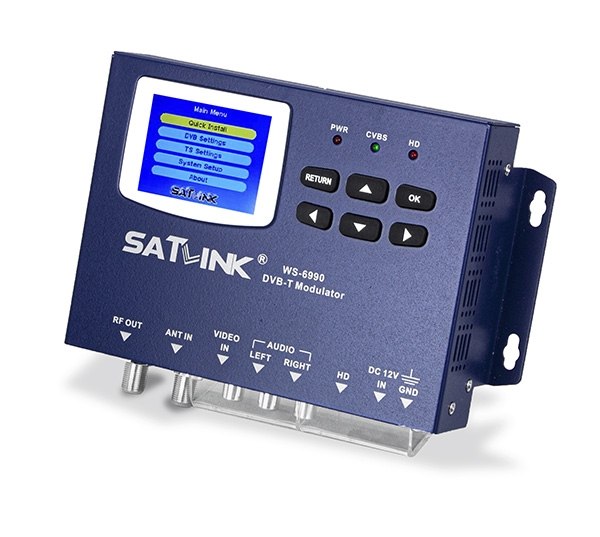

● 2.4-inch color LCD display
● Carriers 2K and 8K
● User friendly setup and control
● Compact and wall mountable

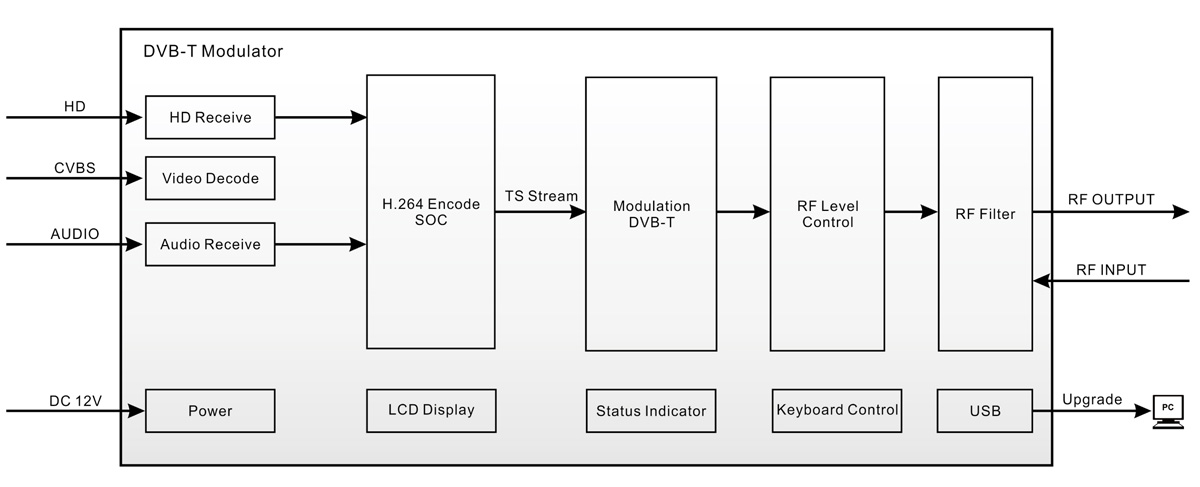

Modulator
Standard DVB-T
Constellation QPSK / 16QAM / 64QAM
Bandwidth 6 / 7 / 8 MHz
Carriers 2K / 8K
Guard Interval 1/4, 1/8, 1/16, 1/32
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Frequency Range 100 ~ 860 MHz
Output Level 70 ~ 100 dBuV
Output Impedance 75Ω

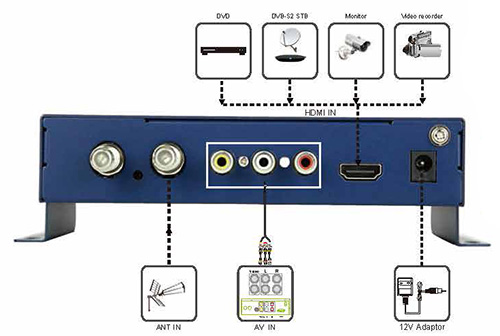

CVBS
Video Resolution 576i PAL / 480i NTSC
Connector RCA
HD
Compression H.264-bitrate 5-15 Mb/s
Video Resolution 1920*1080_60P,1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60P,1280*720_50P
Connector HDMI
General
Power Source DC 12V/1.5A
Operating Temperature 0 ~ +45°C
Dimensions 155mm( L ) ×114mm(W) × 33mm(H)
Weight 0.58Kg
