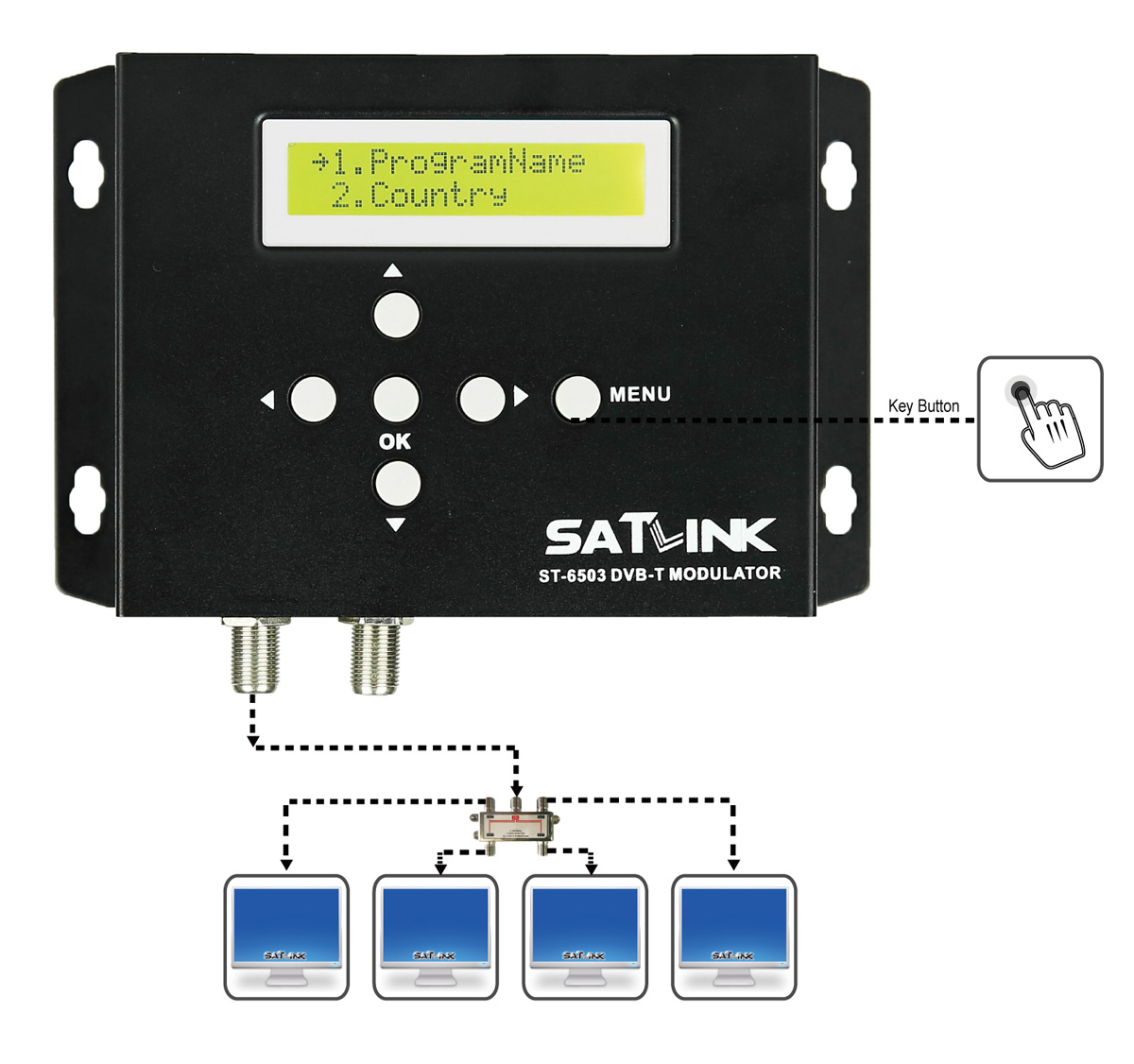

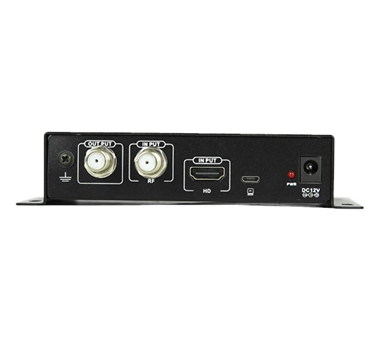

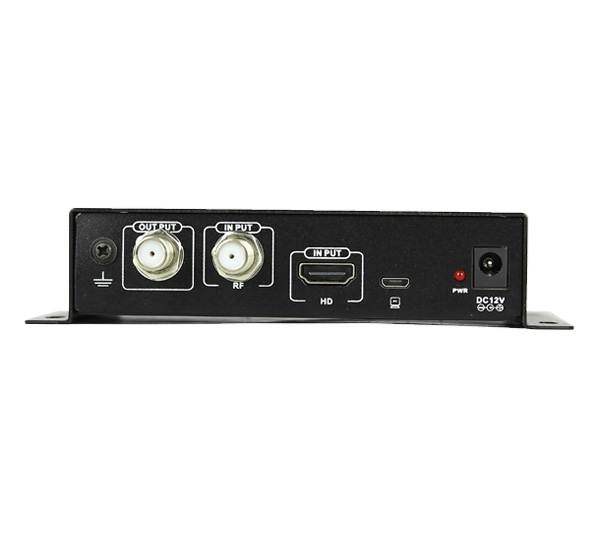

ST-6503 ST-6503 modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. Order
● High level of integration, high-performance,Full-featured,integrated design
● Single input modulator that converts HD source to a DVB-T channel

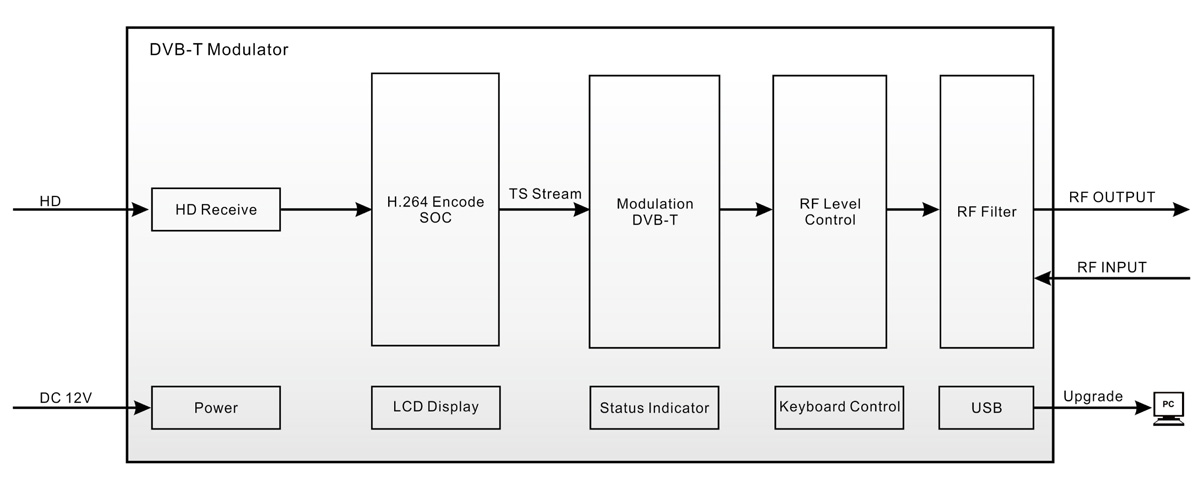

● Standard COFDM modulation and H.264 encoding
● Multiple video format compatibility including 720p / 1080p
● Bandwidth: 6/7/8MHz
● Frequency range: 100~860MHz
● Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV

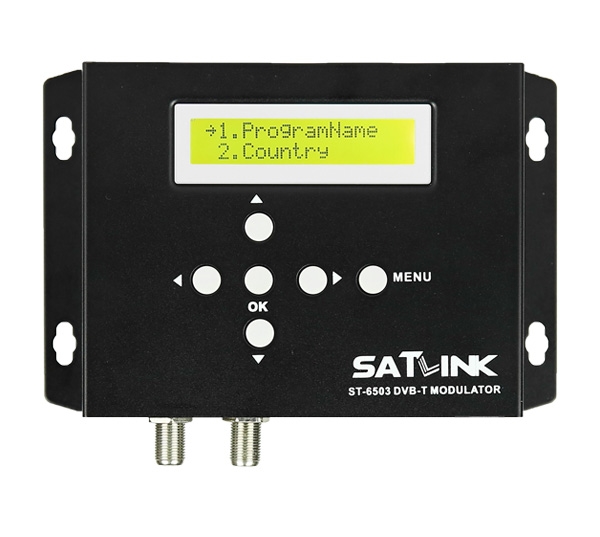

● 16*2 LCD lattice screen
● Small size and light weight
● Carriers 2K and 8K
● User friendly setup and control
● Compact and wall mountable

Modulator
Standard DVB-T
Constellation QPSK,16QAM,64QAM
Bandwidth 6 / 7 / 8 MHz
Carriers 2K / 8K
Guard Interval 1/4,1/8,1/16,1/32
Code Rate 1/2 , 2/3 , 3/4 , 5/6 , 7/8
Frequency Range 100 ~ 860 MHz
Output Level 70 ~ 100 dBuV
Output Impedance 75’Ω
HD
Compression H.264-bitrate 5-15 Mb/s
Video Resolution 1920*1080_60P,1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60P,1280*720_50P

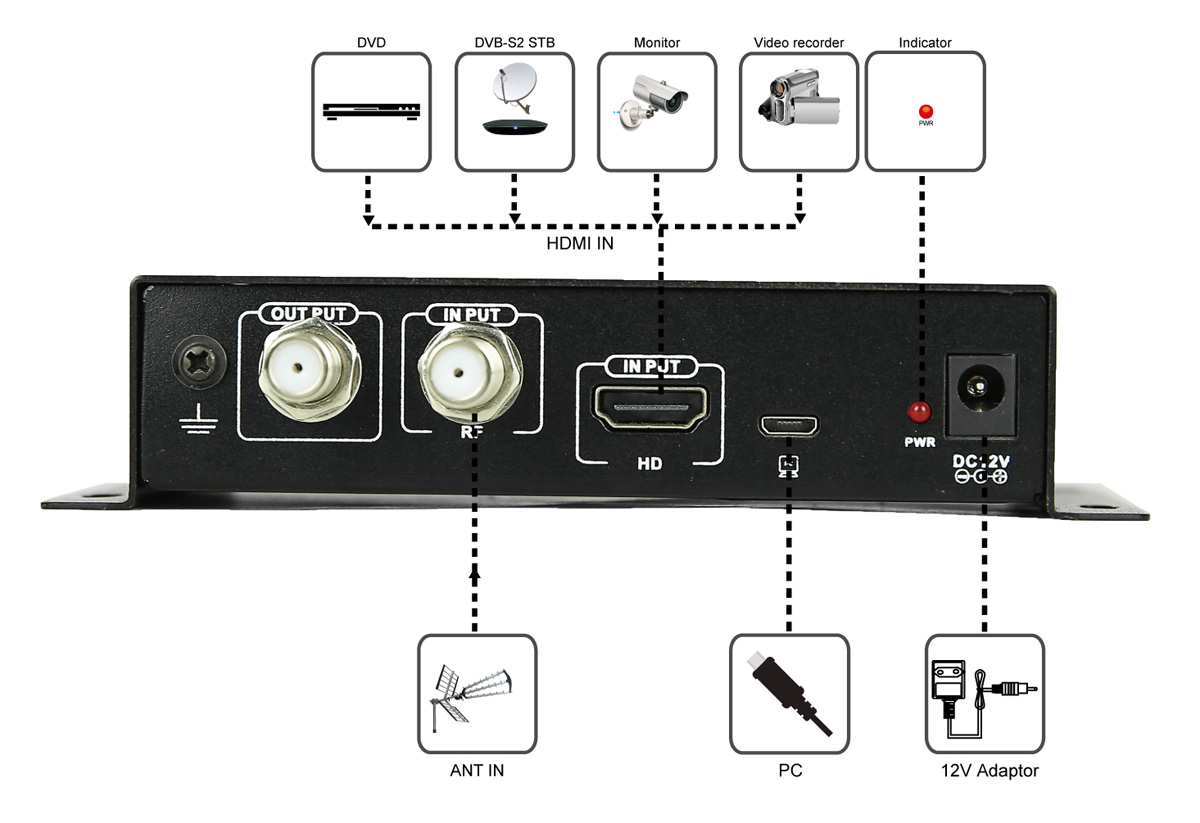

Connector HD
General
Power Source DC 12V/1.5A
Operating Temperature 0 ~ +45°C
Dimensions 125mm( L ) ×100mm(W) × 28mm(H)
Weight 0.5Kg
If you are interested in these products, please leave the relevant staff will contact you quickly.
